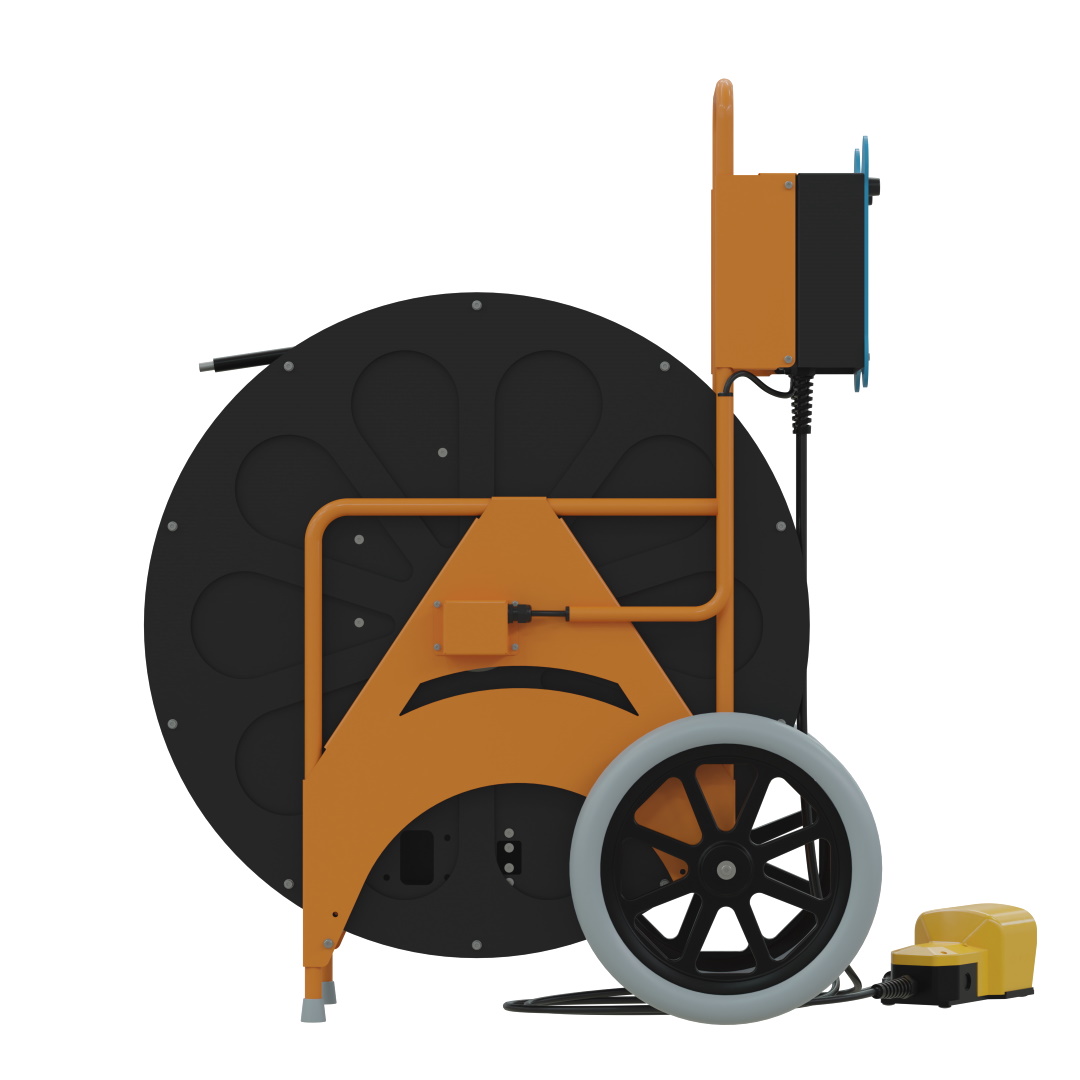

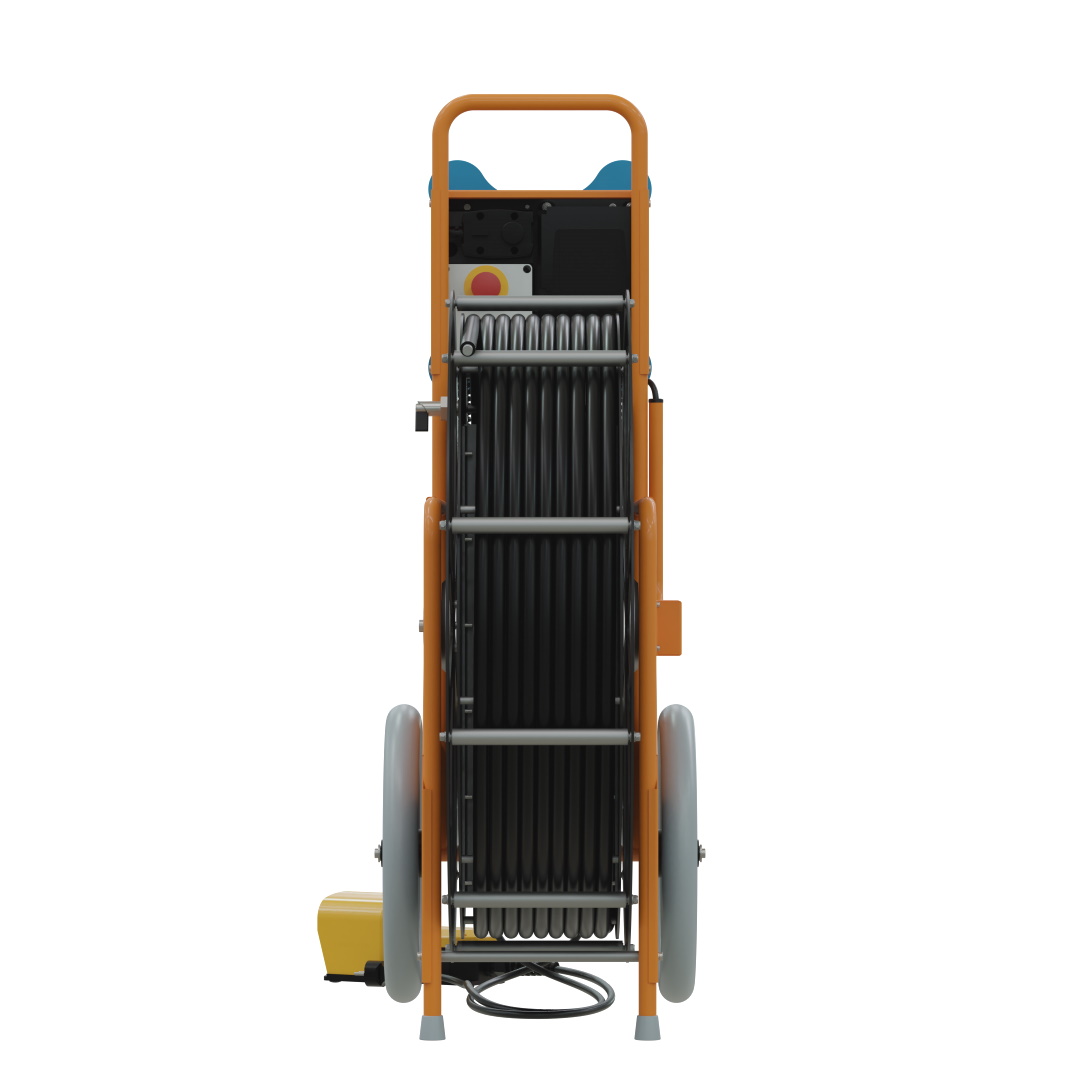

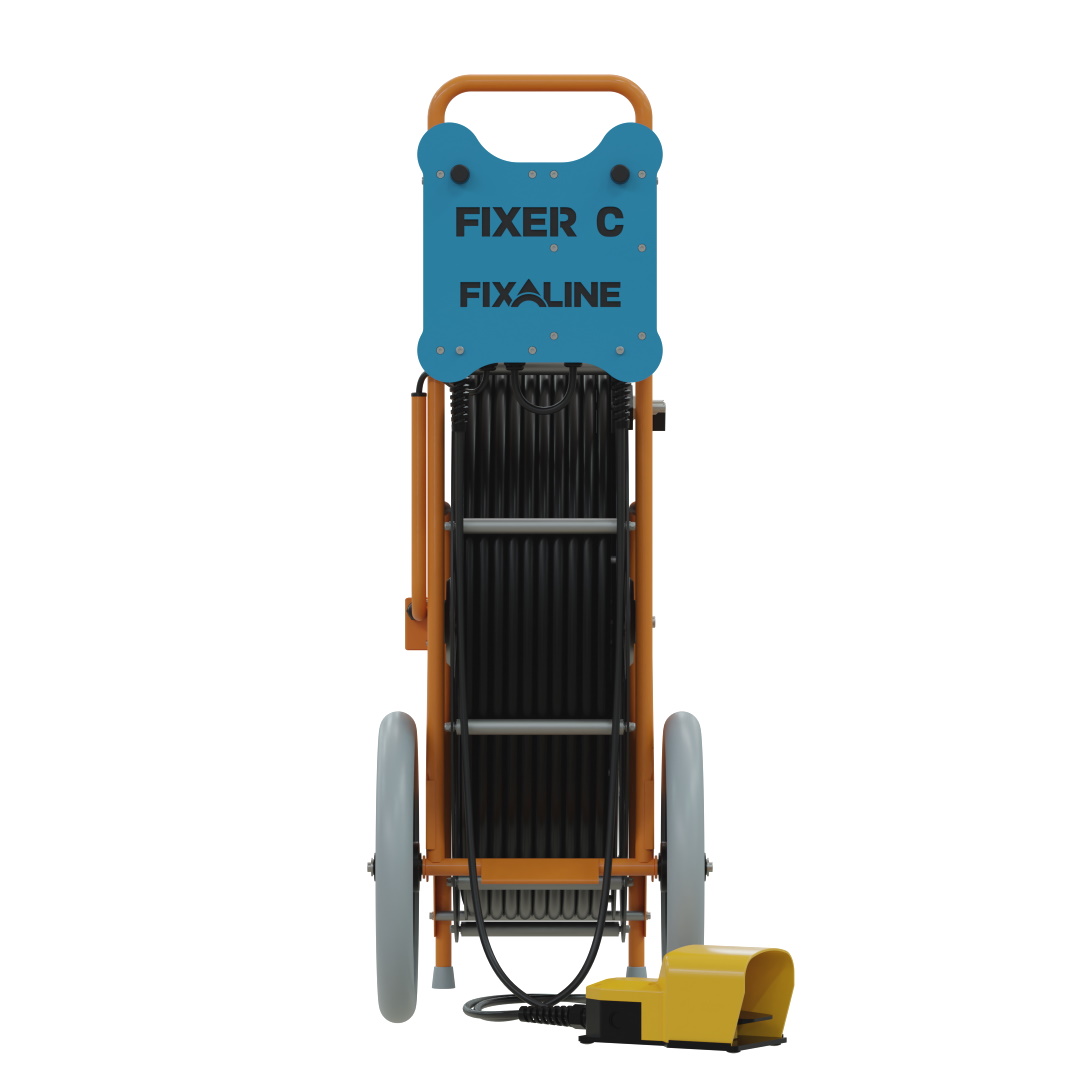

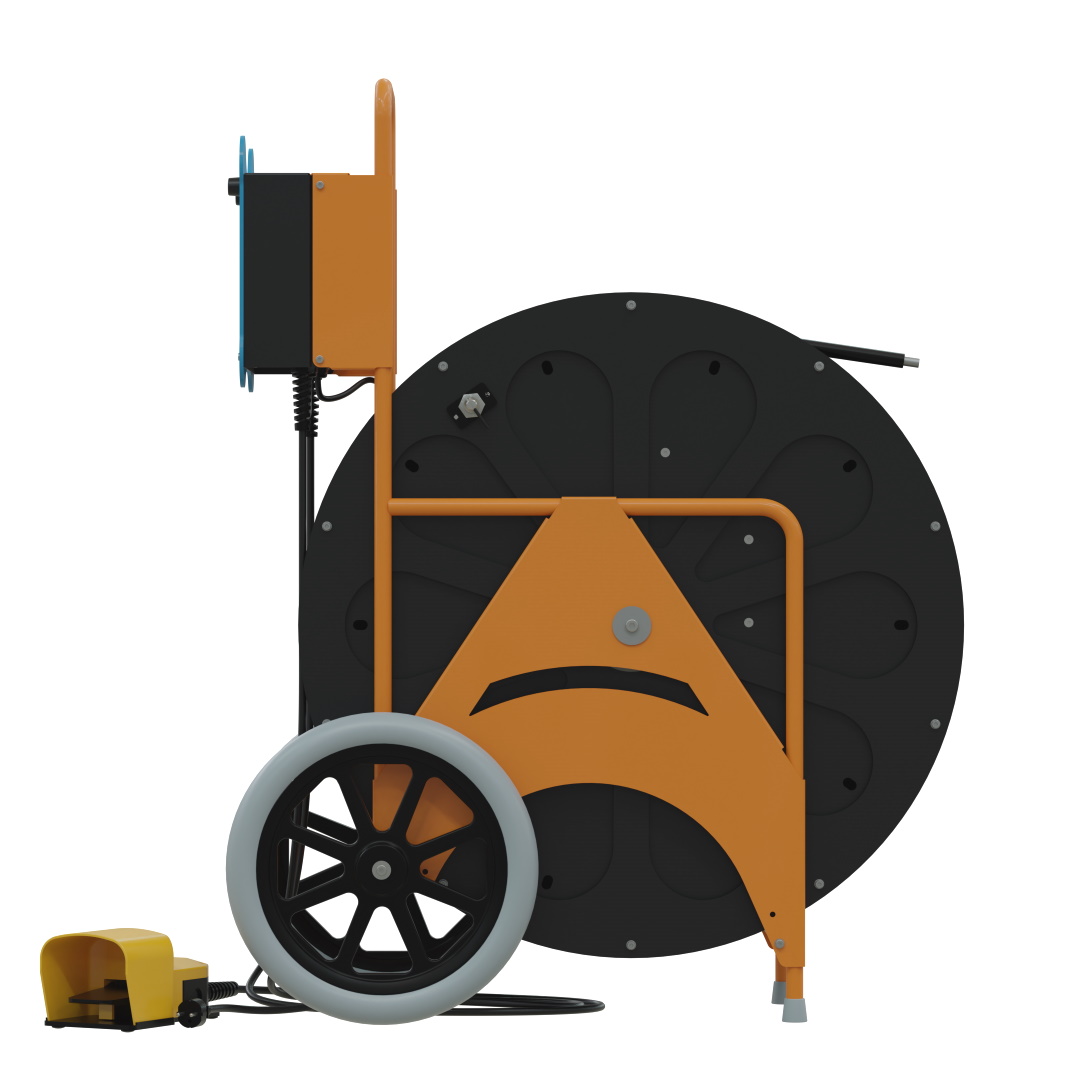

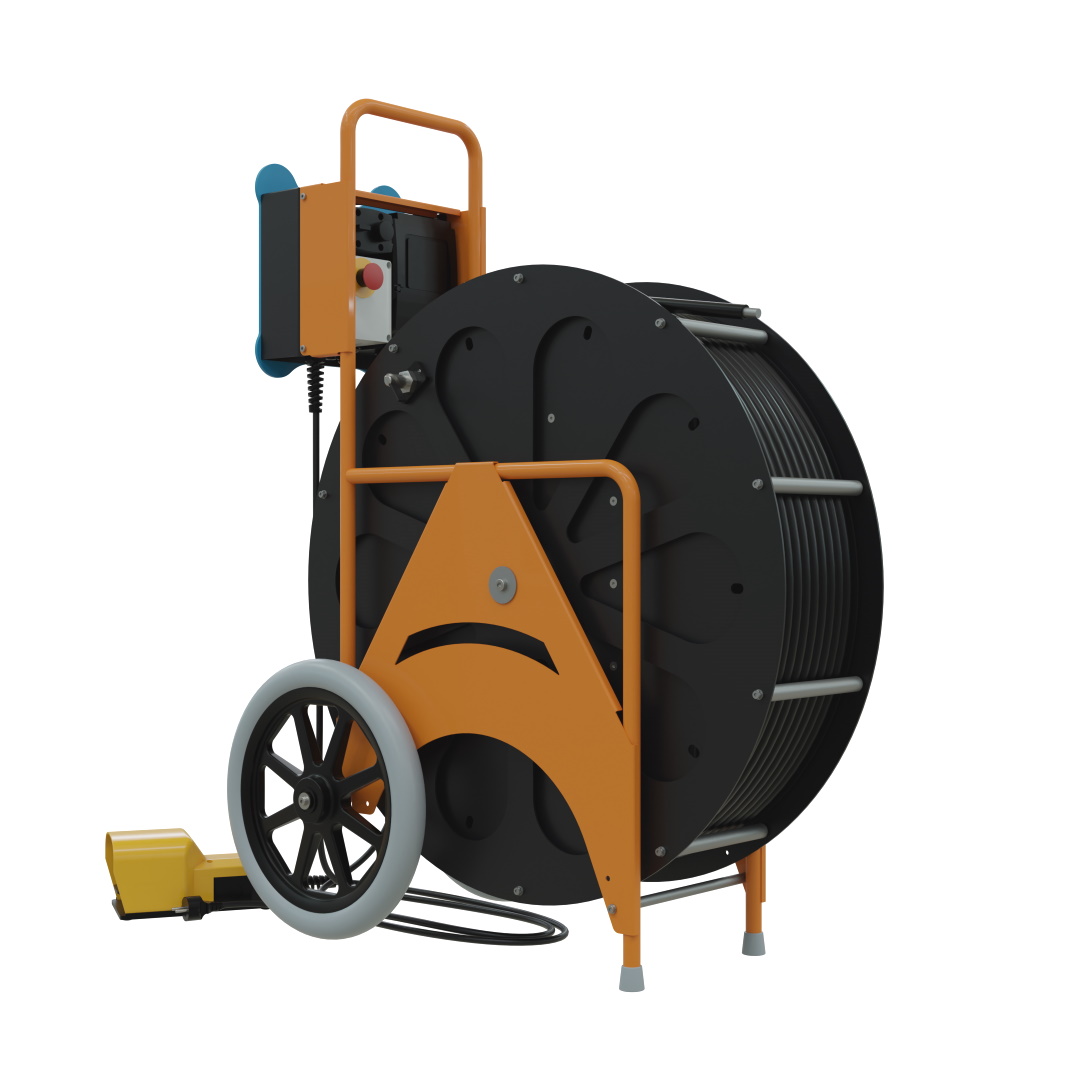

FIXER Combi 240V 10mm vaijerilla

813580413436297424
Tuotenumero: 6000COMB23-240V-10MM

Saldo : 0,00 kpl

Tuotteen kuvaus

Size (cm / inches) 122 x 45 x 95 cm / 48.03 x 17.72 x 37.40 in
Weight (kg / lb) Without shaft 56.8 kg / 125.22 lb
With shaft 74.5 kg / 164.24 lb
Shaft
Ø (mm / inches)
Length (m / feet)

Ø10 / 0.39 Flexible Shaft with Outer Casing
31 / 101.7
Rotating max. speed (rpm) 2250
Voltage and power rating (V/kW) 240 V / 1.5 kW
Input Power Electric, 1-phase
Input 220-240VAC / 50-60 Hz / 16 A
IP Class 54
Diameter (mm / inches) DN50-200 / 2-8
Other technical information




  • Adjustable speed control
  • Direction Switch
  • Foot Pedal (OPC)
  • Emergency Stop
  • Electronic Safety Switch
  • PU Foam Wheels, diameter 400mm
  • Robust steel frame
  • Drum lock
