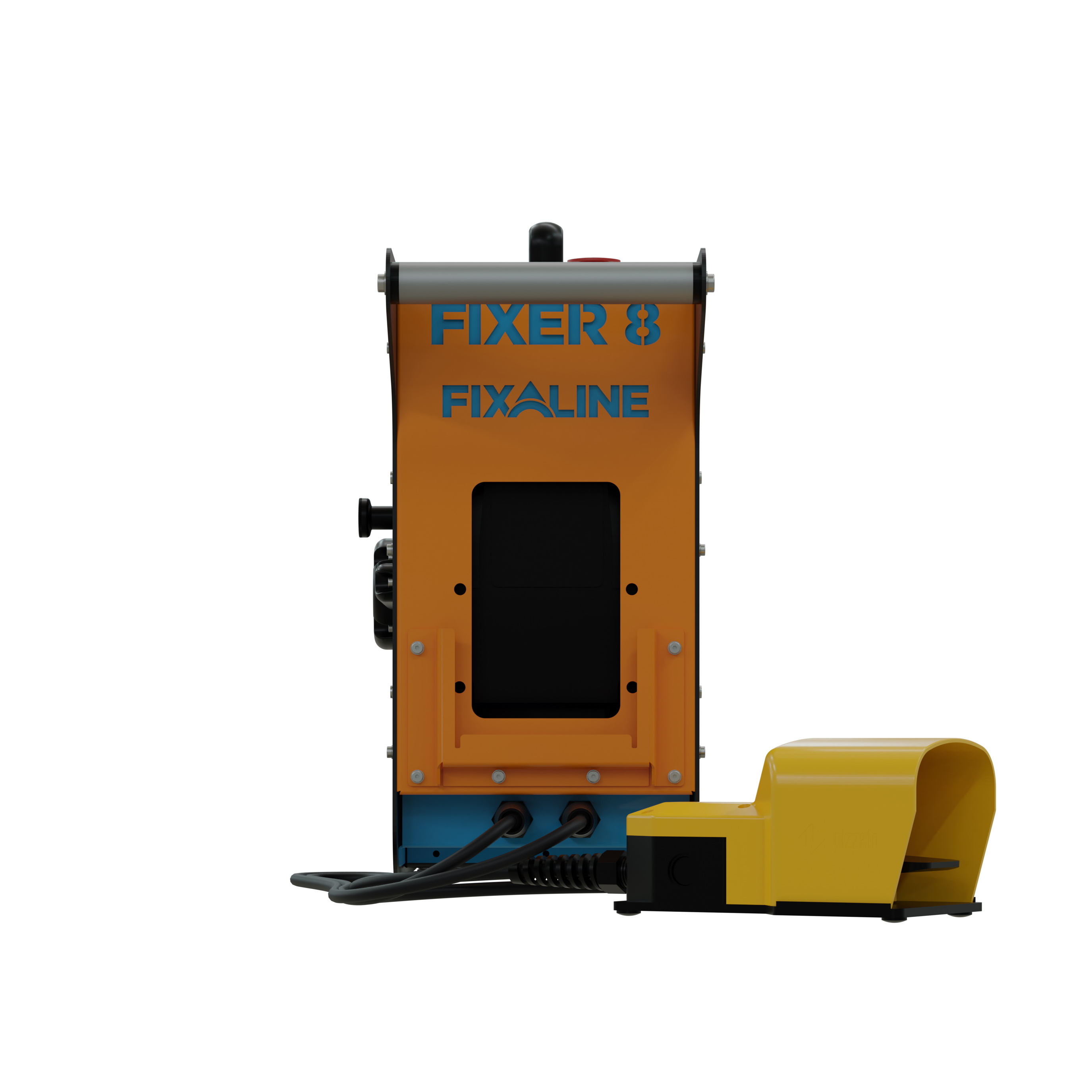

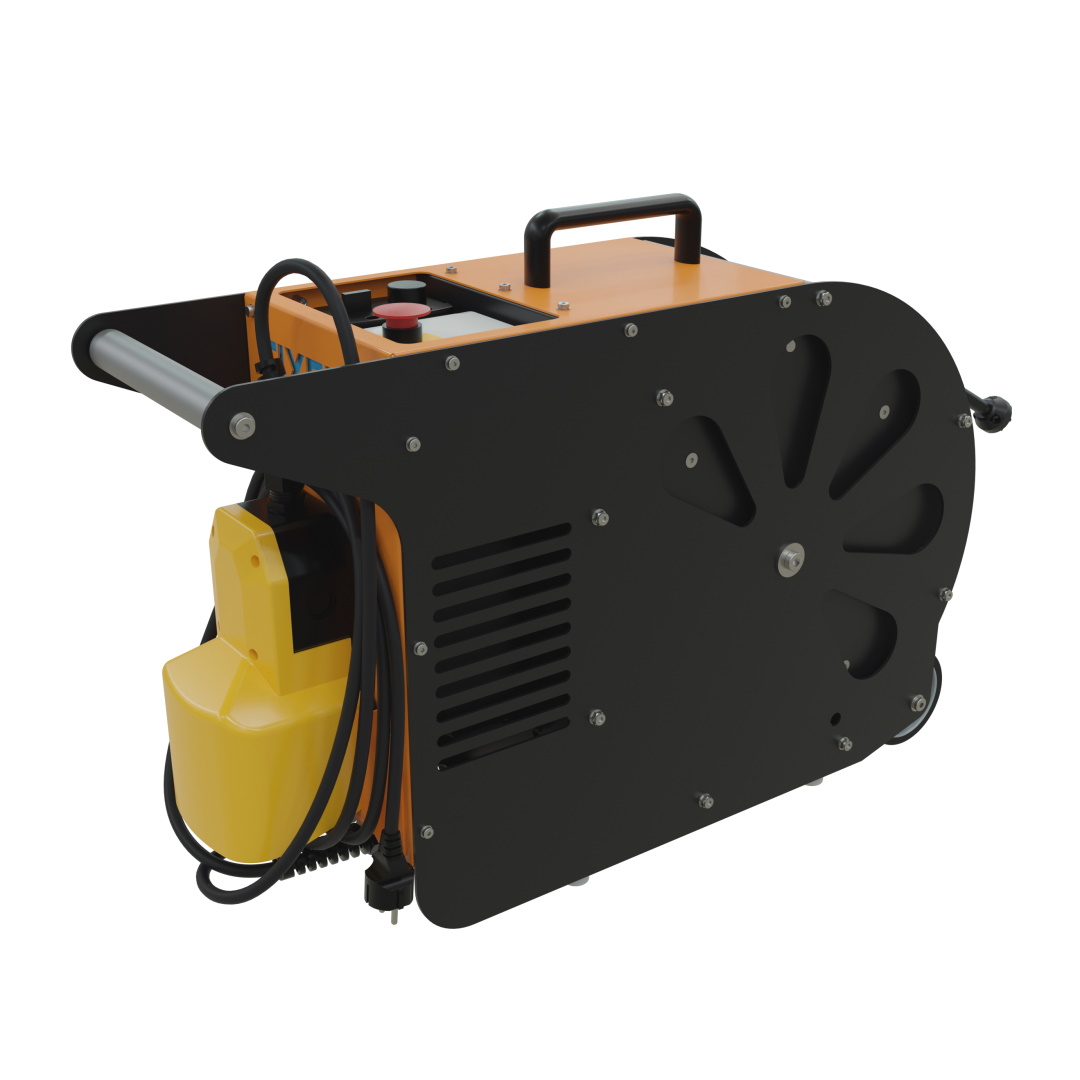

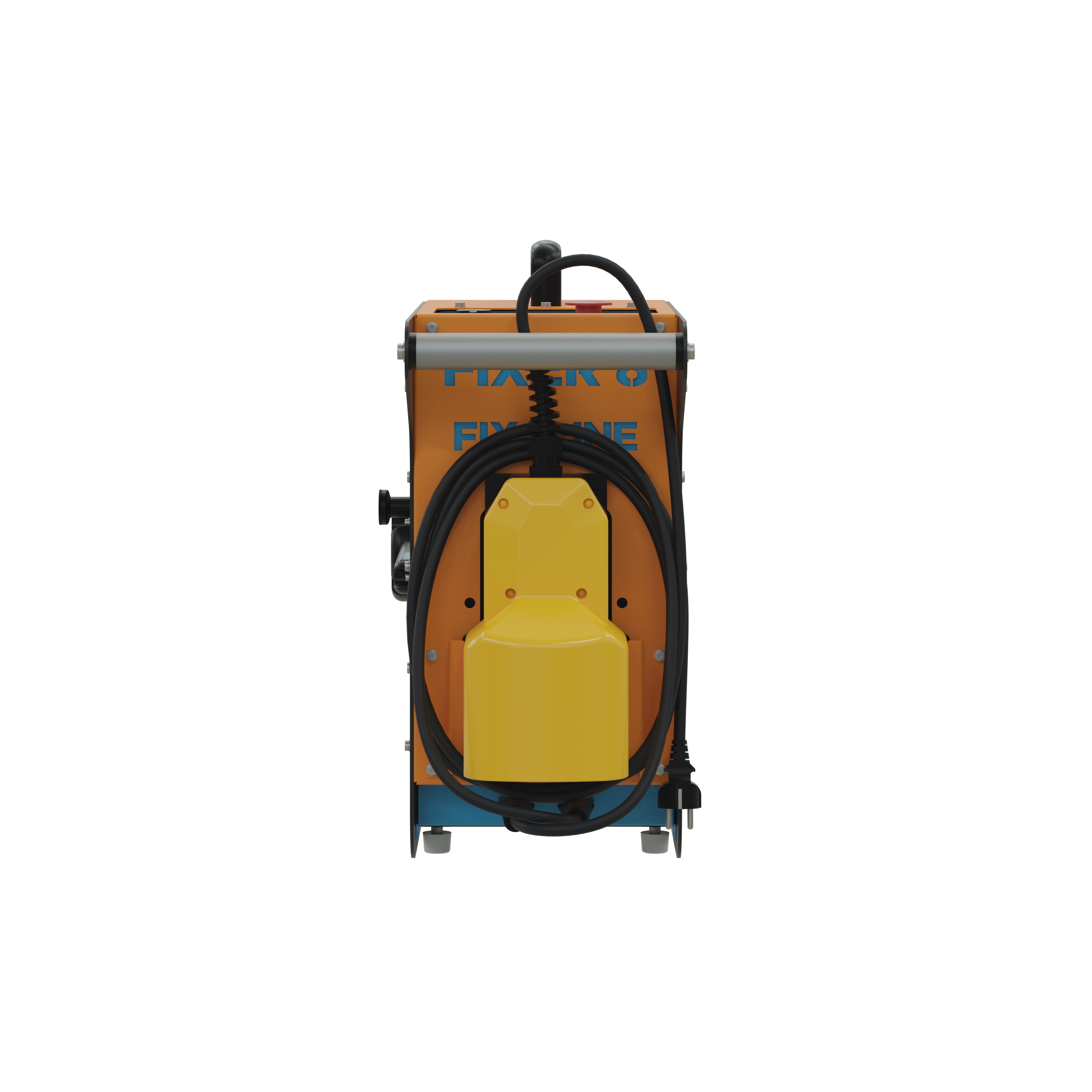

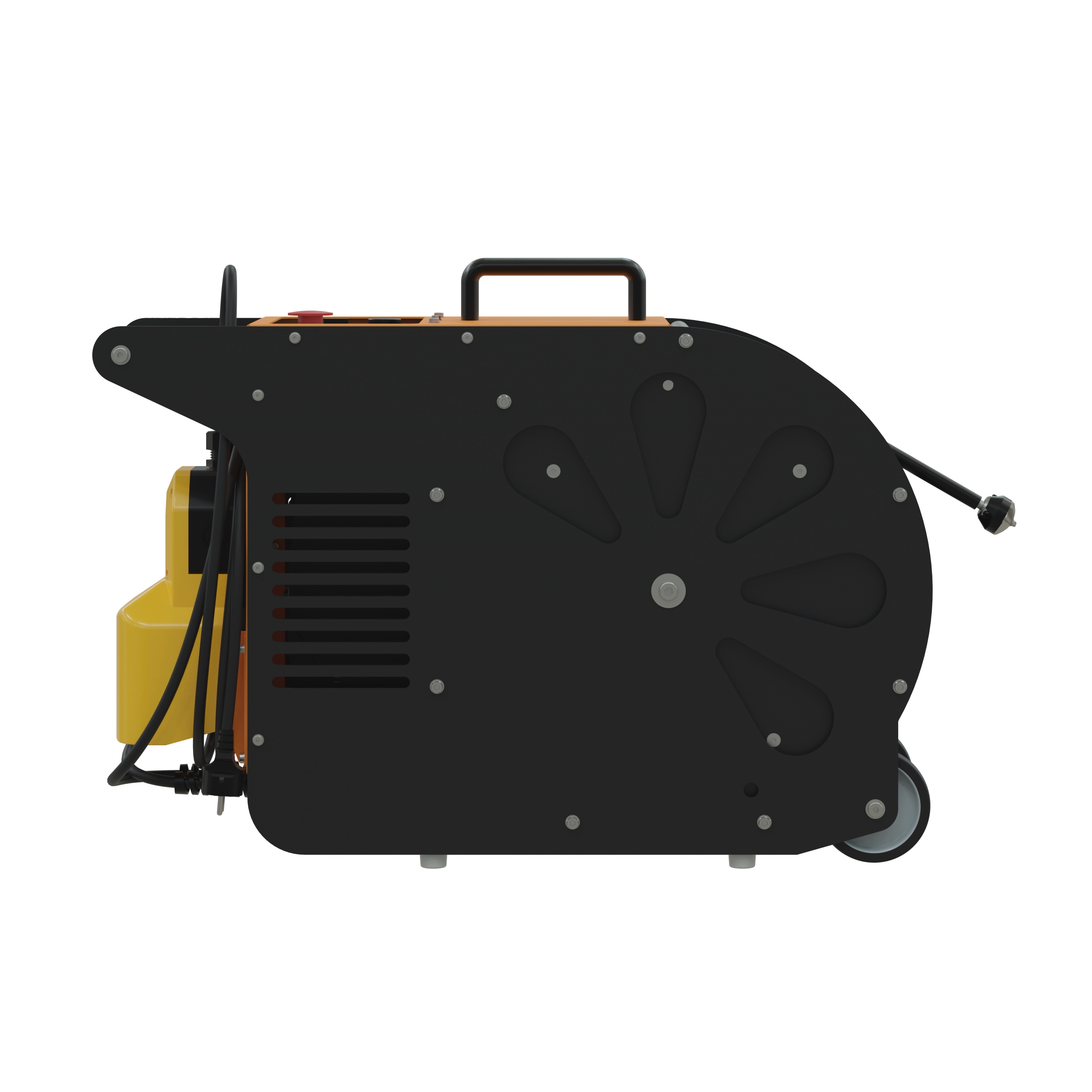

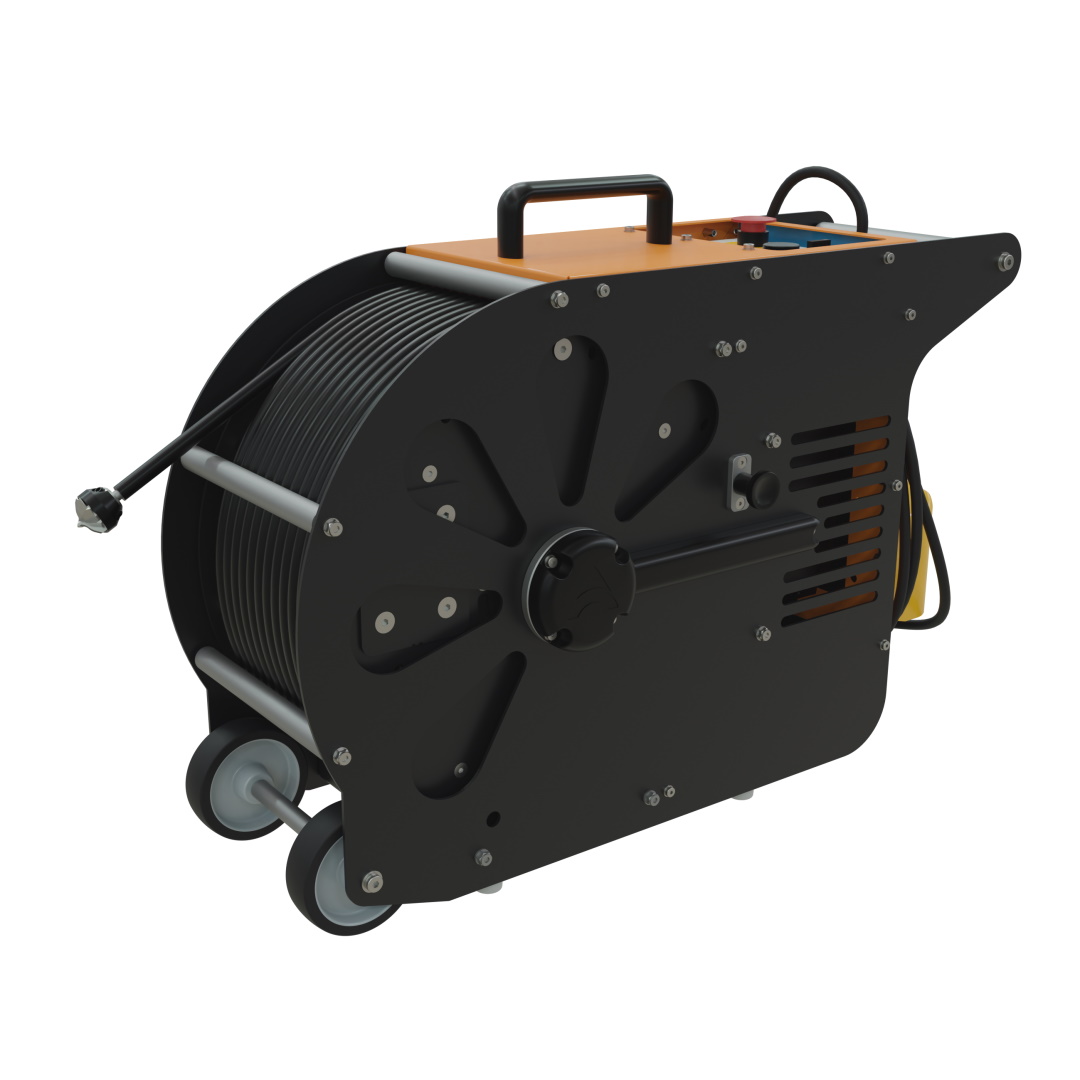

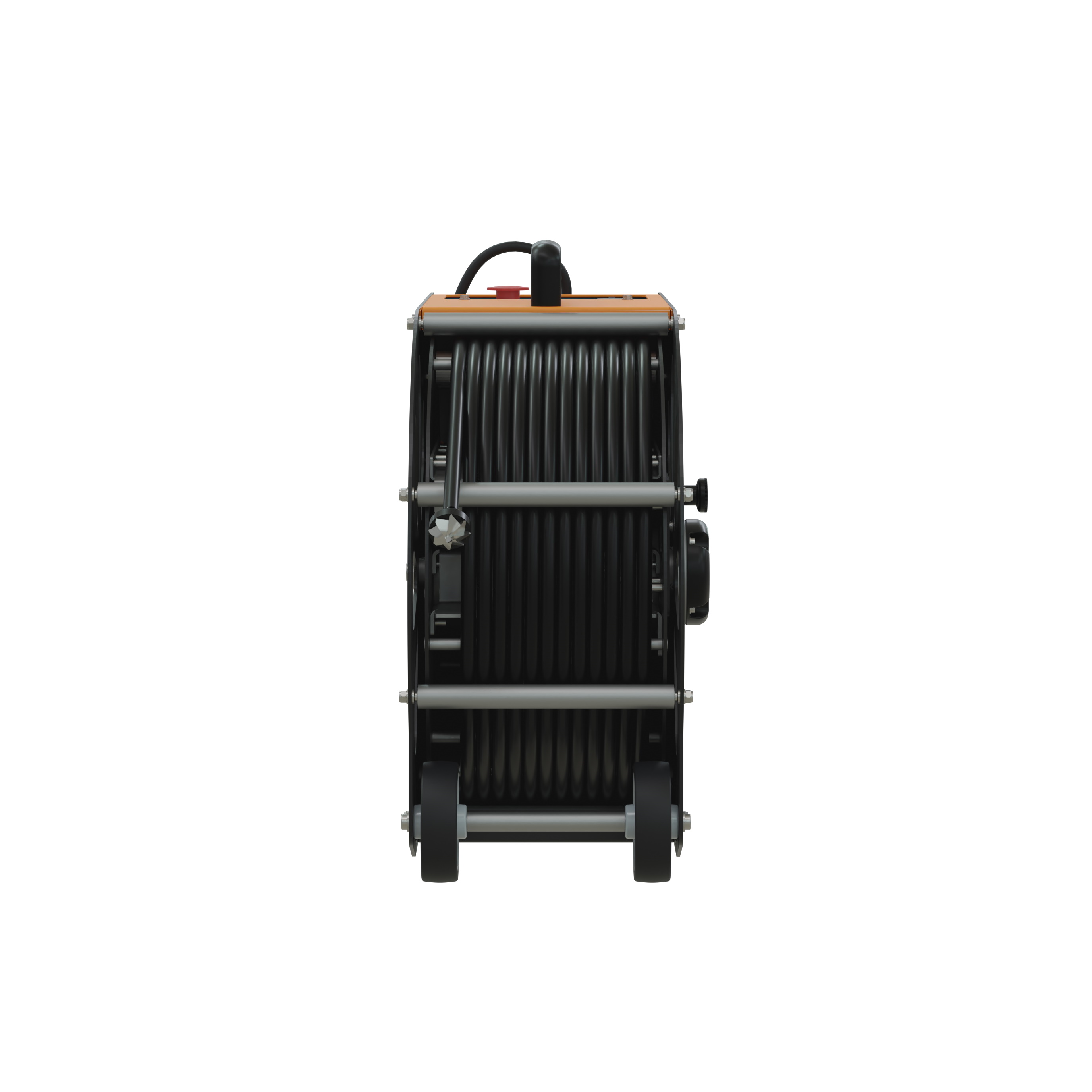

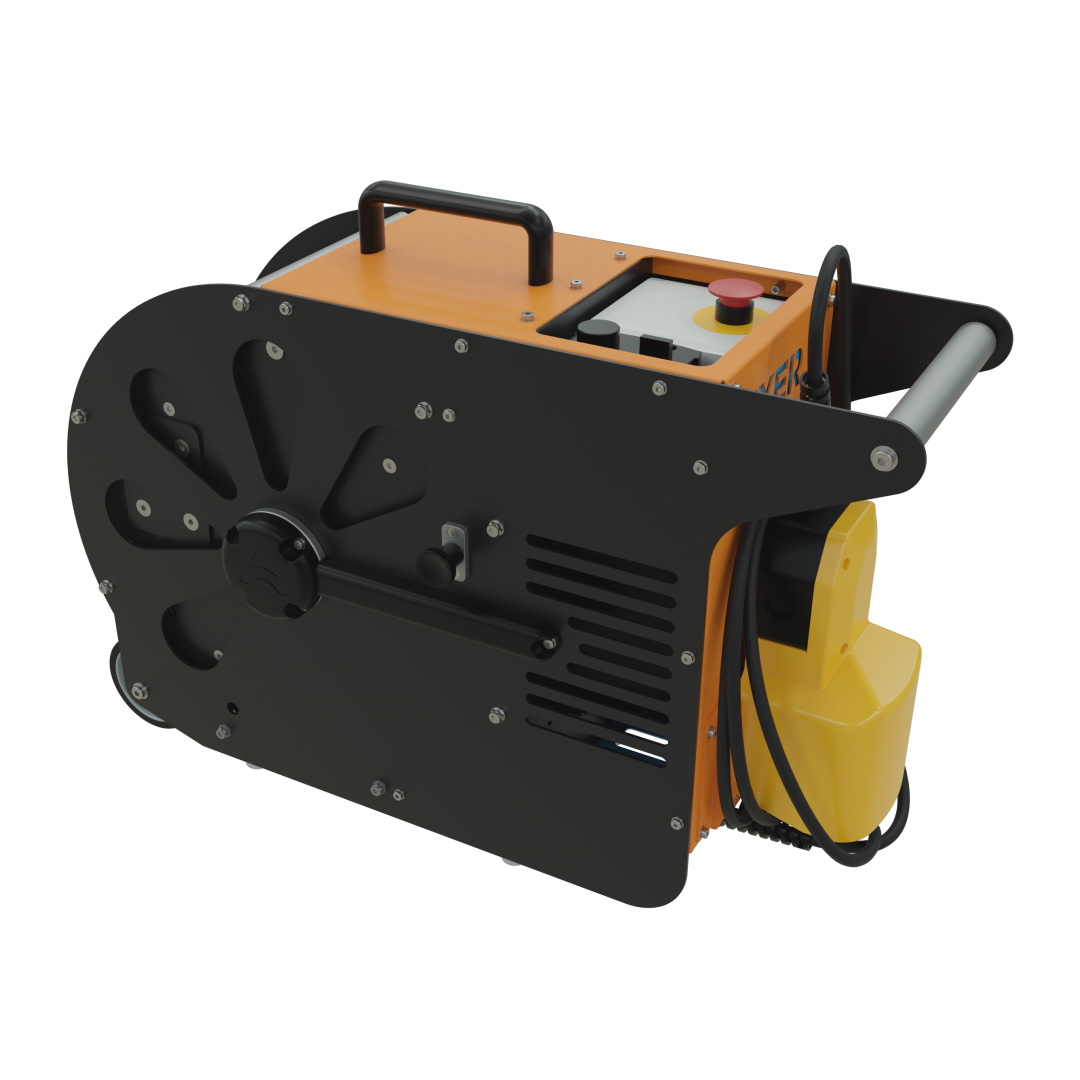

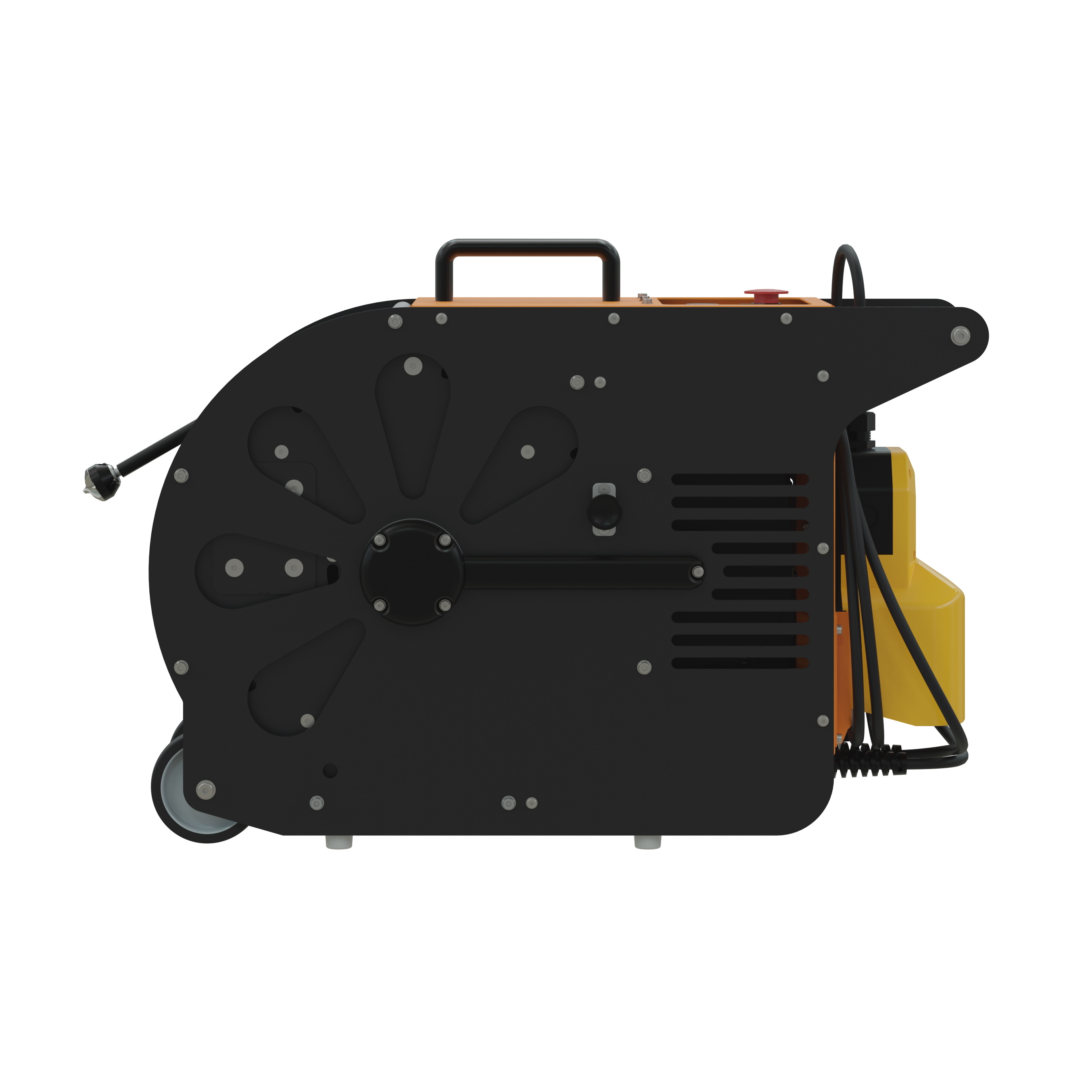

FIXER 8 - 120 V

Size (cm / inches)

53 x 27 x 73 cm / 20.87 x 10.63 x 28.74 in

Weight (kg / lb)

Without shaft 25 kg / 55.1 lb

With shaft 32 kg / 70,5 lb

Shaft Ø (mm / inches)

Shaft  Length (m / feet)

 Ø8 / 0.31 Flexible Shaft with Outer Casing

19,5 / 64

Rotating max. speed (rpm)

2250

Voltage and power rating (V/kW)

120 V / 0.75 kW

Input Power

Electric, 1-phase, Input 110-120VAC / 50-60Hz / 17A

IP Class

54

Diameter (mm / inches)

DN50-100 / 1.18-4

Other technical information

Adjustable speed control
Direction Switch
Foot Pedal (OPC)
Emergency Stop
Electronic Safety Switch
Wheels
Robust steel frames
